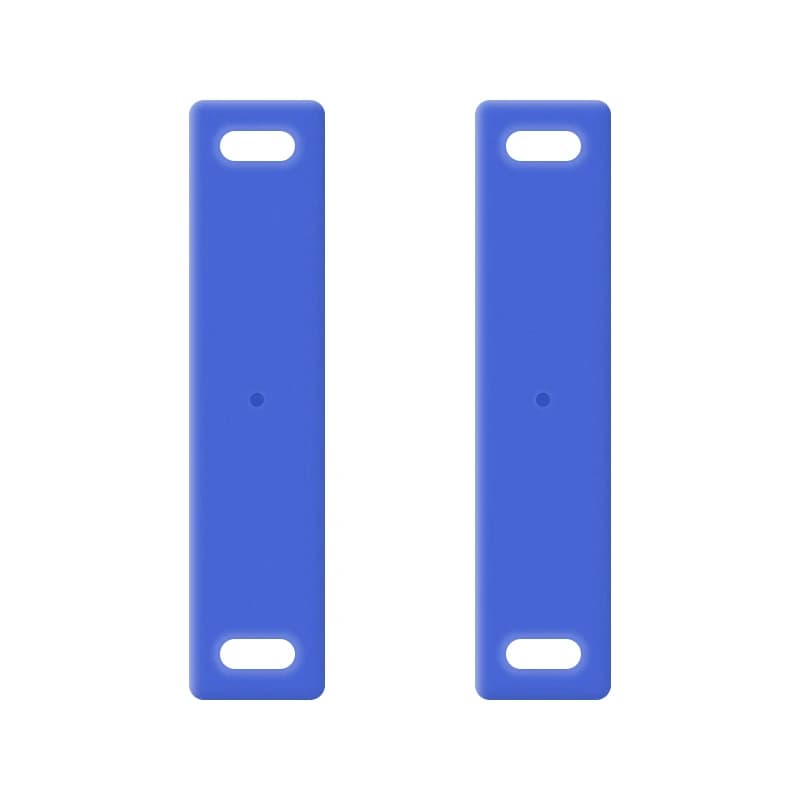

Universal UHF Silicone RFID Tag T-S20

The T-S20 is a flexible UHF RFID tag in a durable silicone housing. Its key feature is its ability to be used for tracking both metal and non-metal assets, providing a long read range (up to 6m on metal).

Thanks to its IP65 rating and flexible body, this tag is ideal for tagging assets with curved shapes or for use in environments requiring resistance to moisture and moderate impacts.

Key Features:

• Universal: Works reliably on both metal and non-metal surfaces.

• Flexible Body: Made of silicone, allowing it to be mounted on curved surfaces.

• Long Range: Reads up to 6 meters (on metal) or 3.5 meters (in air).

• Reliable Chip: Equipped with the NXP U8 chip with 128 bits of EPC memory.

• Protection: IP65 rated for dust and water resistance.

Technical Specifications:

• Frequency: 902-928 MHz

• Protocol: ISO 18000-6C (EPC GEN2)

• Chip: NXP U8

• EPC Memory: 128 bits

• User Memory: N/A

• Read Range (with 9dBi fixed reader):

  • 0–6 m (on metal)

  • 0–3.5 m (in air)

• Material: Silicone

• Protection Level: IP65

• Dimensions: 80 x 18 x 6 mm

• Weight: 14 g

• Operating Temperature: -20°C to +85°C

Application Areas:

• IT asset management (tagging cables, equipment)

• Warehouse inventory (flexible containers, pallets)

• Fixed asset tracking in challenging environments
