UHF RFID Pallet Tag G8101

The G8101 is a durable UHF RFID tag specifically designed for tracking and managing plastic and wooden pallets in warehouse environments. The tag features a high protection class (IP68) and a wide operating temperature range (up to +105°C), ensuring reliable performance in harsh industrial conditions.

With a read range of up to 7 meters and a reliable NXP U code 9 chip, this tag enables fast and accurate inventory of pallets passing through RFID portals.

Key Features:

• Durable Design: Made from PVC and PET to withstand industrial environments (IP68).

• For Pallets: Ideally suited for mounting on wooden and plastic pallets.

• High Performance: Equipped with an NXP U code 9 chip for a read range of up to 7 meters.

• Reliable Mounting: Features mounting holes for rivets or screws.

• Temperature Resistant: Operates in a wide temperature range from -40°C to +105°C.

• Customization: Supports LOGO, barcode, and serial number printing.

Technical Specifications:

• Frequency: 860-960 MHz

• Protocol: ISO 18000-6C (EPC GEN2)

• Chip: NXP U code 9

• EPC Memory: 96 bits

• Read Range: 0–7 meters (reader dependent)

• Protection Level: IP68

• Material: PVC + Aluminum + PET

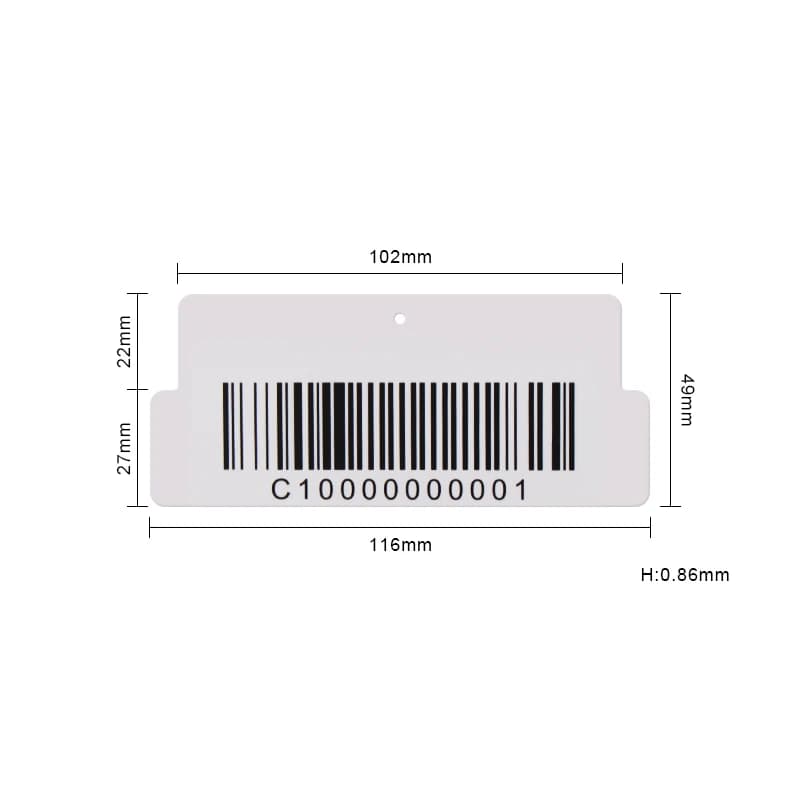

• Size (selectable): 84x18x0.86mm / 85x22x0.86mm / 116x49x0.86mm

• Mounting: Riveting / Screws

• Operating Temperature: -40°C to +105°C

Application Areas:

• Returnable Transit Item (RTI) management (pallets, containers)

• Warehouse and logistics center inventory

• Asset tracking in manufacturing

• Cargo identification at gate portals
