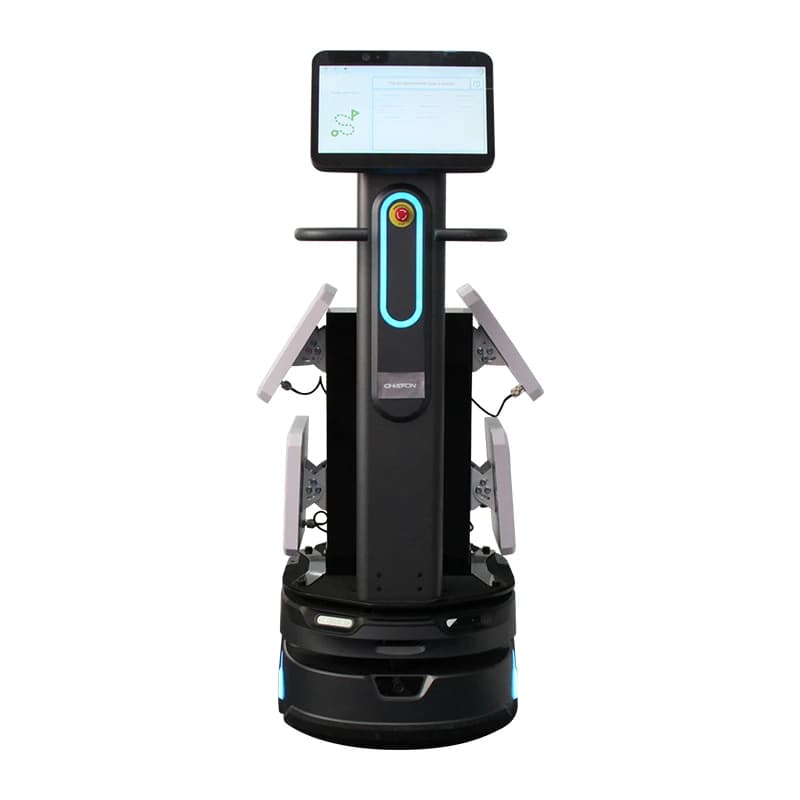

RFID Smart Inventory Robot W100

The W100 is a fully autonomous robot designed for automated inventory management in warehouses and large archives. The robot navigates independently along predefined routes using LiDAR and visual navigation, performing real-time scans of all UHF RFID tags within a 15-meter range.

It is equipped with four high-performance 9dBi antennas and a reader capable of capturing up to 1000 tags per second. The robot operates for 8+ hours, automatically returns to its wireless charging station, and includes a full SDK (Java, Android 9.0) for integration with your WMS or ERP system.

Key Features:

• Full Autonomy: Automatic navigation (LiDAR + Vision), map building, and route patrol.

• High-Speed Scanning: 33dBm power and 4x 9dBi antennas provide up to 15m range and 1000 tags/sec speed.

• Long Battery Life: 8+ hours of operation with automatic wireless recharging at its dock.

• Advanced Platform: Qualcomm 8-core CPU, 8GB RAM, 64GB ROM, and a 14-inch Full HD screen.

• Flexible Integration: Comes with a full SDK (Java) based on Android 9.0 (RobotOS) for easy development.

• IP55 Rated: Protected against dust and water spray, ready for warehouse environments.

Technical Specifications:

• Frequency: 866-868 MHz (EU) / 902-928 MHz (US)

• Protocol: ISO 18000-6C (EPC GEN2)

• Antennas: 4 x 9dBi (Circular Polarization)

• Read Range: 0–15 meters

• Read Rate: 1000 tags/sec

• Navigation: LiDAR + 3D Vision + IR Cams + Odometer

• OS: RobotOS (based on Android 9.0)

• Battery: 24.3Ah (8+ hours of operation)

• Dimensions: 650 x 525 x 1377 mm

• Weight: 64.7 kg

• Protection Level: IP55

Application Areas:

• Fully automated inventory for large warehouses

• Data center asset management

• Mobile inventory for archives and libraries

• Logistics hub automation
